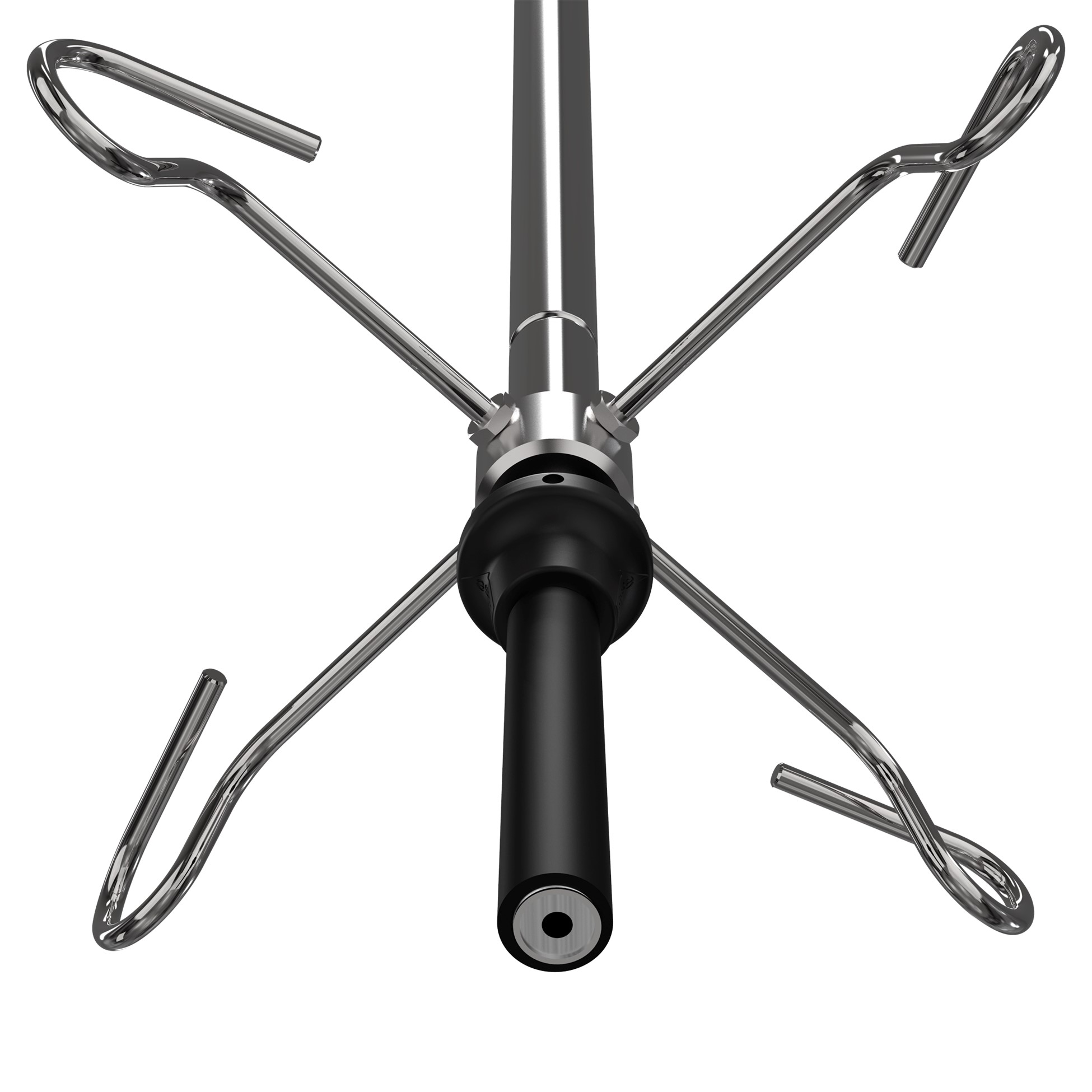

IV-POLE / IV-HANGER (I1022252)
Portable and versatile: the working area around the patient can be arranged suiting the application guarantees a safe (constant) hanging of IV-bottles during treatment. Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance. No risk of injury thanks to the rounded shape of the bottle hooks available for other heights.
Additional Information
| Material: | Stainless steel/ Aluminium |
| Room height: | 2,500 (8.2′) |
| Bottle Holder: | Stainless steel, for screw-in |
| Number of hooks: | 4 |
| Arrangement of the hooks: | 90° to each other |
| Load capacity (kg): | 2 kg (4.41 lbs) / hook, 15 kg (33.07 lbs) / IV-pole, 20 kg (44.09 lbs) rolling unit |
| Type of height adjustment: | One-hand height adjustment |
| Maximum length/height: | 1,020 (3.346′) |
| Minimum length/height: | 730 (2.395′) |
| Inner tube diameter: | Ø 14 mm (0.0459″) |
| Outer tube diameter: | Ø 18 mm (0.05905″) |
| Storage: | 4 low-noise nylon bearings |
| with thread: | Pump Holder (Z2N06342) |
| Features: | Carrier unit with automatic locking device and permanent sliding brake |
| Total load capacity (kg): | 15 (33.07 lbs) |
| Load capacity per system (kg): | 8 (17.64 lbs) |
| Load capacity per hook (kg): | 2 (4.41 lbs) |
