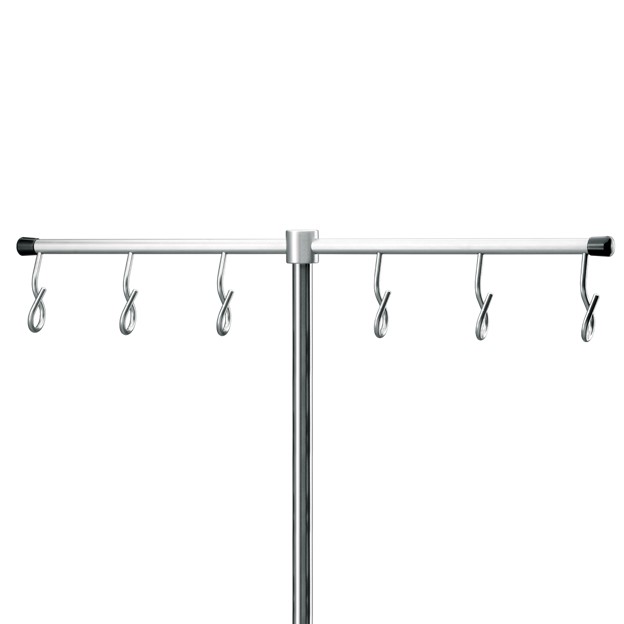

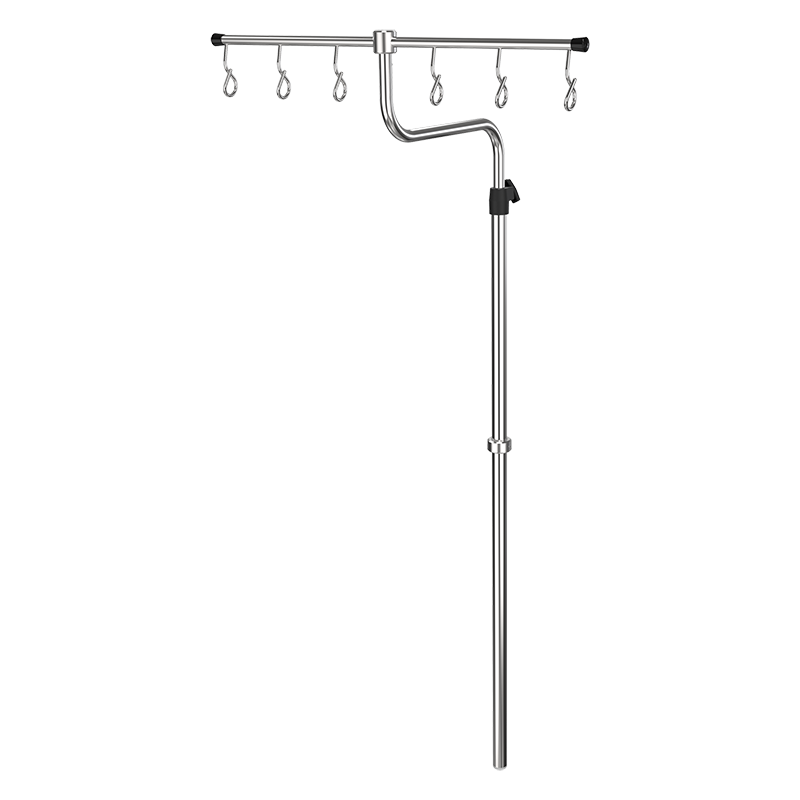

IV-POLE, 90° ANGLED (I2000552 & I2000562)

IV-POLE, 90° ANGLED with maximum height of 2,115 mm (6.93897′) (I2000552)
IV-POLE, 90° ANGLED with maximum height of 2,400 mm (7.87401′) (I2000562)

With screw height adjustment
Effective infusion care by securely hanging infusion bottles and bags
Space-saving infusion care
All plastic parts are lightfast (resistant to lighting and sunlight)
Low risk of pinching when retracting and extending the IV-pole thanks to the built-in safety distance

Additional Information

Material:	Stainless steel
Bottle Holder:	Stainless steel, for screw-in
Number of hooks:	6
Arrangement of the hooks:	In line with each other
Bottle holder:	stainless steel, safety bottle hooks
Load capacity (kg):	2 per hook
Type of height adjustment:	Screw height adjustment
Maximum length/height:	2,115 mm (6.93897′) (I2000552) 2,400 mm (7.87401′) (I2000562)
Minimum length/height:	1,270 mm (4.16666′) (I2000552) 1,780 mm (5.83989′) (I2000562)
Angled:	2 x 90°
Parallel shift:	300 mm (11.81102″)
Inner tube diameter:	Ø 18 mm (0.70866″)
Outer tube diameter:	Ø 25 mm (0.98425″)
Length of outer tube:	1,000 mm (3.28083′) (I2000552) 1,500 mm (4.92125′) (I2000562)
Total load capacity (kg):	12 kg (26.45549 lbs) (I2000552) 8 kg (17.63699 lbs) (I2000562)
Load capacity per system (kg):	6 kg (13.22774 lbs)
Load capacity per hook (kg):	2 kg (4.41 lbs)
