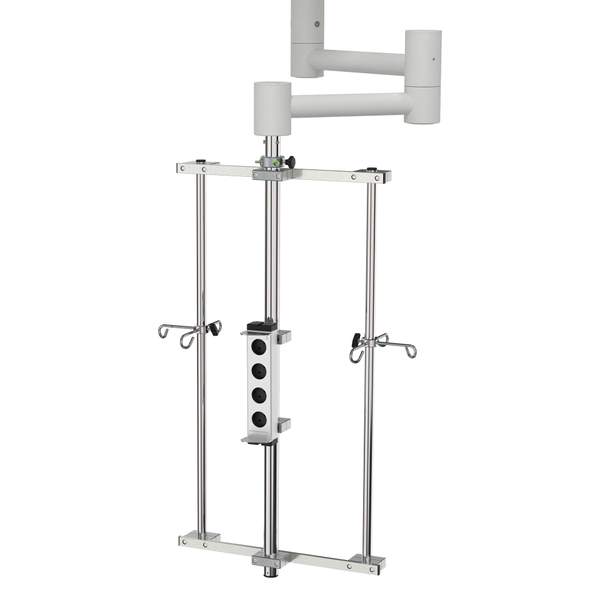

PM_ICS 3 CARRIER SYSTEM_Z2N02292.jpg
  • PM_ICS 3 CARRIER SYSTEM_Z2N02292.jpg

CARRIER SYSTEM

  • Compatible with ceiling system ICS3 ONLY
  • Provides unhindered access to the patient thanks to a multifunctional room use
  • Adequate interior design thanks to individual configurability
  • Maximum flexibility within the intended work field enables an effective work flow
  • System permits a flexible management of infusion pumps and devices with a maximum floor freedom
  • Pivotable Support Arm solution with integrated power supply
  • Full access to patient thanks to a maximum floor freedom
  • Reinforced bottle holder allows hanging 5 liters of rinsing solutions

For room height of 2.5 m (8.20209′) to 2.7 m (8.85826′) – (Z2N02252)
For room height of 2.7 m (8.85826′) to 2.9 m (9.51443′) – (Z2N02272)
For room height of 2.9 m (9.51443′) to 3.1 m (10.17060′) – (Z2N02292)

Get A Quote

Additional Information

Material: Stainless steel/ Aluminum
Room height: 2.5 m (8.20209′) to 2.7 m (8.85826′)
2.7 m (8.85826′) to 2.9 m (9.51443′)
2.9 m (9.51443′) to 3.1 m (10.17060′)
Bottle Holder: 2 Stainless steel bottle holders and 3 safety bottle hooks
Number of hooks: 6
Arrangement of the hooks: 120° to each other
Load capacity: 5 kg (11.02 lbs) / hook, 40 kg (88.18 lbs) / system
Working radius: Ø 1,800 (5.90551′)
Support tube frame: 2 stainless steel tubes Ø 25 mm (0.98425″) and 2 stainless steel medical rails 25 (0.98425″) x 10 mm (0.39370″) (support frame), 6 aluminum-clamps
Multiple socket outlet: 4-fold (optional lockable)
Power supply: Integrated into the support arm
Insulation sleeves: To electrically separate the carrier system from the raw ceiling
Angle of rotation: Approximately 320°
Features: Distance from frame to floor is approximately 1,000 mm (3.28083′) to 1,200 mm (3.93700′)
Grounding: With 4 connection pins
Spacer discs: For vertically straight fixing
Fastening material /ceiling cover: Not included
Basic equipment: Yes
